Two-component chimney system with plastic liner
KLB / KLZ
Features
- can be combined with SIB and SIZ systems in a two-pass formwork
- the chimney flue can be assembled during the rough construction, the actual plastic liner is usually installed during the boiler installation
- the space between the block and the flue pipe itself can be used for independent air supply to the appliance
- advantageous price
- simple and quick assembly
- very good resistance to acid condensate and long liner life
Parameters
| Classification | according to EN 14471:2013+A1:2015 |
|---|---|
| Operating temperature | up to 120 °C |
| Type of operation | condensing boiler / gas boiler |
| Fuel | liquid and gaseous fuel |
| Material | PPH |
| Average | 60 — 250 mm |
Description
Characteristics and advantages
Components

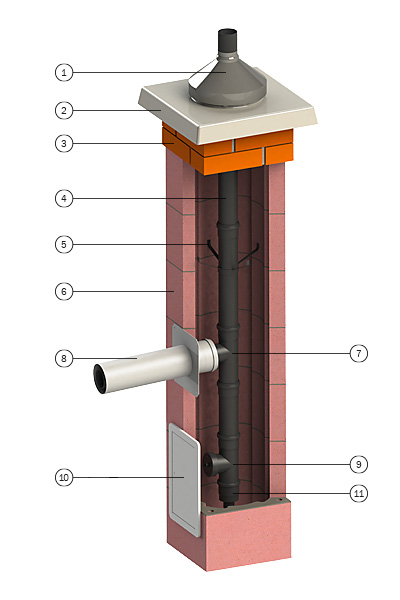

Complete KLB and KLZ assembly
| 1. | Conical part of the outlet |
|---|---|
| 2. | Cover plate |
| 3. | Decorative chimney block |
| 4. | Pipe with neck |
| 5. | Universal spacer sleeve |
| 6. | Chimney block |
| 7. | Connecting T‑piece |
| 8. | LIL tubular piece with hem |
| 9. | Revision T‑piece |
| 10. | Chimney door |
| 11. | Drain with neck |
